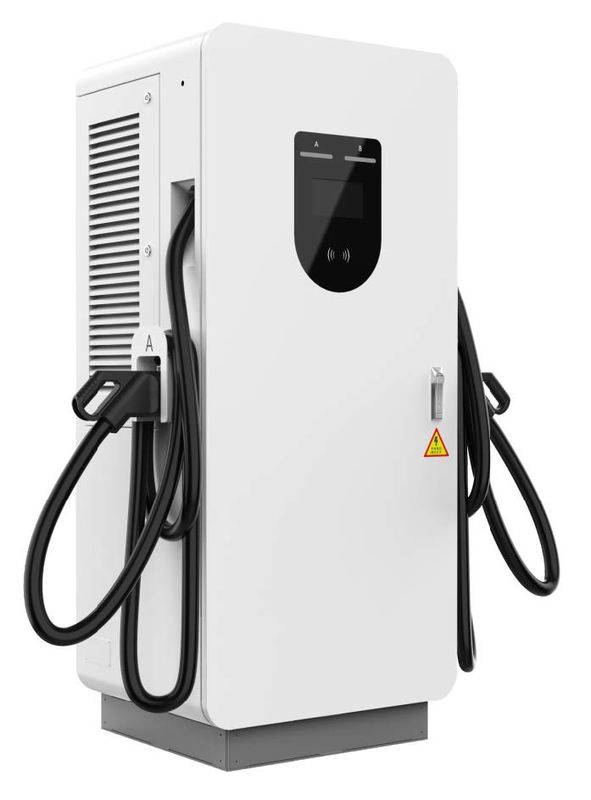

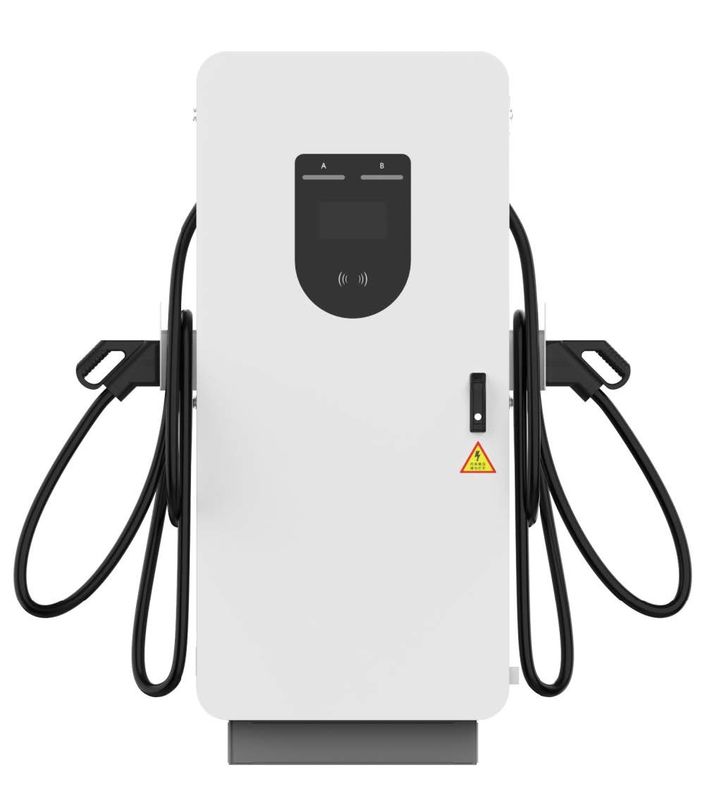

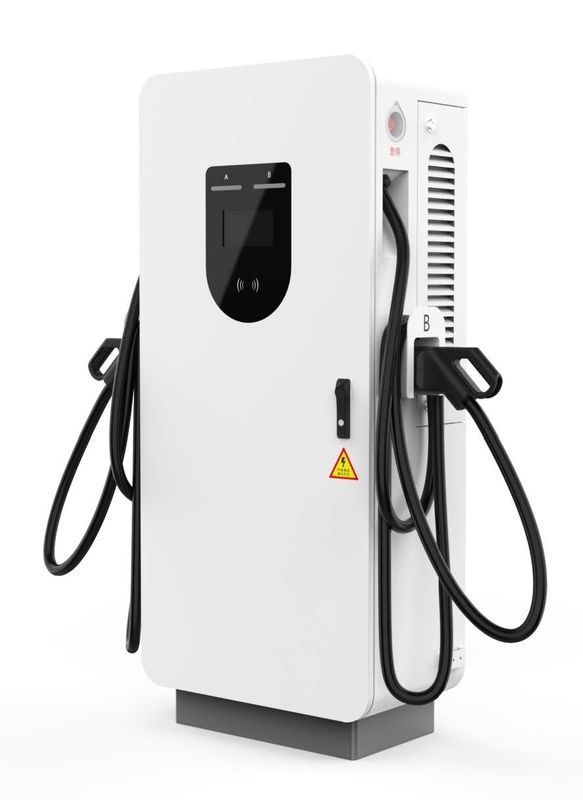

Super Dc 60kW OCPP 1.6 Ev Fast Charger Floor-Stand Dc Charging Station
Product name
60kW/80kW floor-stand DC charger
Starting mode
Plug& Play / RFID card / App
Input
Power Supply: 3P + N + PE
Voltage Range: 400VAC ± 20%
Frequency: 50 / 60Hz
Output Voltage: 200 -1000VDC
Output
Maximum Current: 200A
Rated Power: 60kW
High compatibility, applicable to almost all models on the market
Energy-saving and power-saving, standby power consumption is as low as 3w, and cost is reduced
Various charging methods: plug & play / RFID card / APP
Optional networking mode: support wifi / Ethmet / 3G / 4G / Bluetooth / OCPP 1.6 json control device
The output current has four gears for more flexible adjustment
Various protection functions ensure charging safety in rainy and snowy weather
Optional installation mode: wall-mounted/pole-mounted, more convenient
Friendly interface and comfortable LCD screen
Solution: Expressway charging station
Applica on scenario: charging sta on in expressway service area
Product selec on: integrated and split DC charging pile
Advantage:
1. It is convenient to expand the capacity. The number of charging piles can be increased
according to the demand to reduce the secondary investment.
