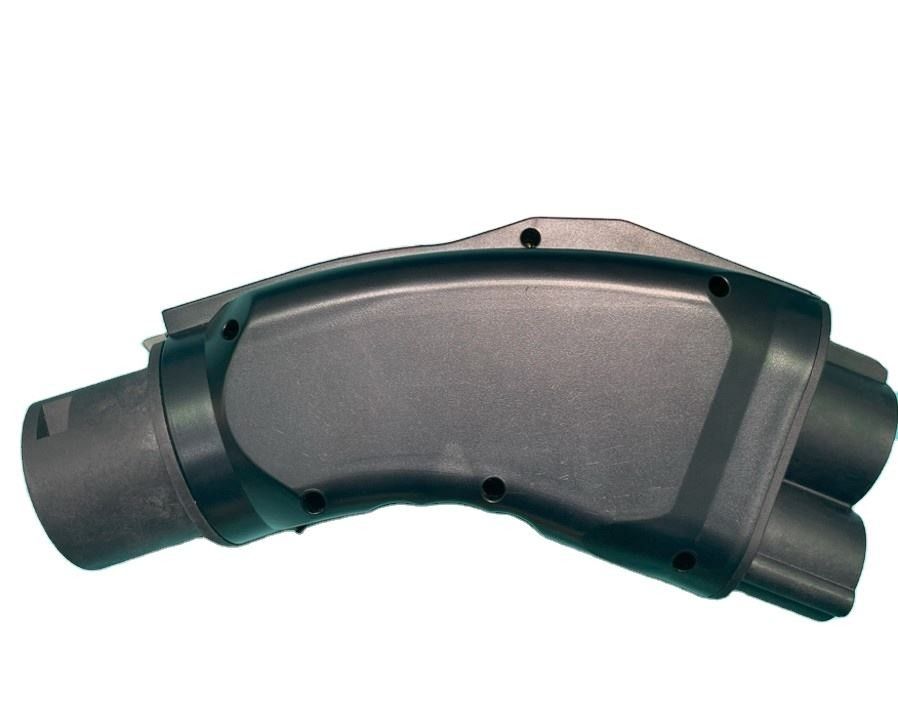

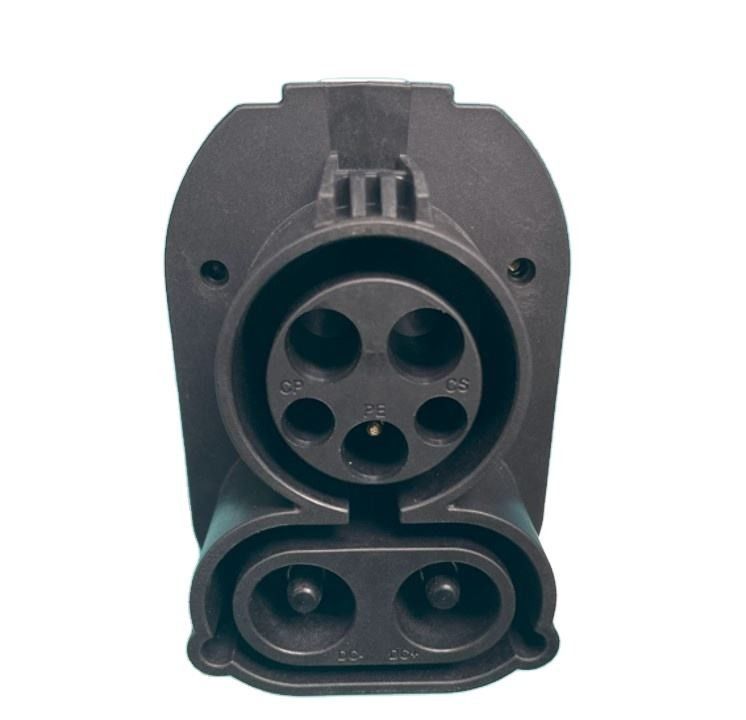

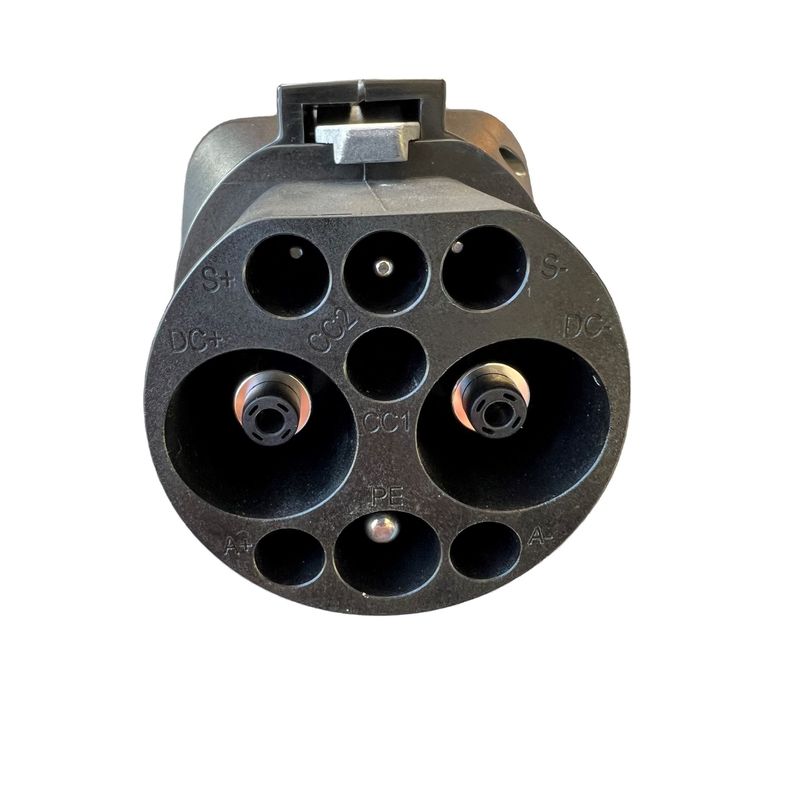

Custom CCS1 To Gbt Adapter DC Charger Adapter 200A GB/T Connector Charger Gun
CCS1 TO GB/T EV Charger Adaptor
Rated Current: 200A DC MAX
Application:Vehicle End, Charging Pile, Charging Pile to Vehicle end
Operating Voltage: 100-500V DC
Withstand Voltage: 2000V
Protection Grade:IP54
Contact Pin: Copper alloy, Silver plating
Case Material:Thermoplastic
Durability:>10000 times
Operating Temperature:-30°C to +50°c
storage Temperature:-40°C to +85°C
Product Paramenters
Use for connect the charging cable on a CCS1 charging station to a GB/T vehicle that has been enabled for DC charging.
1.Conform to the provisions and requirements of CCS1 and GB/T
2. Shell Material: Thermo Plastic ( Insulator inflammability UL94 V0)
3. Contact Pin: Copper alloy, silver or nickel plating
4. Sealing gasket: rubber or silicon rubber
5. Excellent protection performance, protection grade achieved IP54
6.Using riveting pressure process with none screw ,have a beautiful appearance
How to make Order
Please send us an email to specify the item, quantity, color or other specification to place an order.
1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.
2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
